IN STOCK

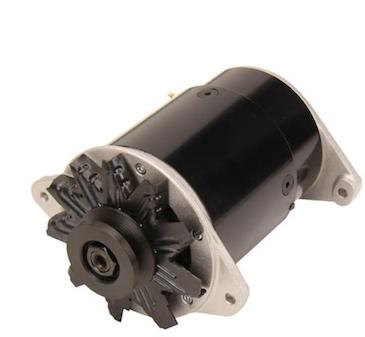

1955-1959 CHEVY CAR & TRUCK
ALTERNATOR REPLACEMENT FOR OEM POWER STEERING GENERATORS

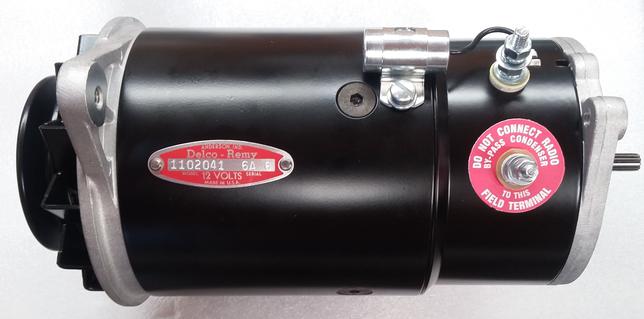

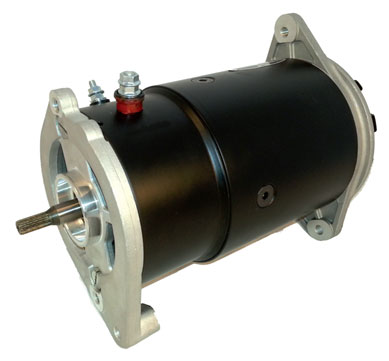

This unit is designed to look like the original generator but internally functions as an alternator.
The OEM power steering pump attaches to the rear just as the original.
- Replaces Delco Power Steering Generators 1102020, 1102041, 1102084 & 1102115.
- 85 amp output created by all new internally regulated alternator components.
- Improved charging rate at all RPMs.
- All mounting dimensions are the same as OEM except for a very slight increase in case diameter.
- Comes with new wiring hardware and step by step instructions.
Our 9029 unit will work as a one wire unit as well as a two wire turning off your dash light.
Classics Generator
4316 Dollar St.
Midlothian, TX. 76065
Phone: 817-473-1448 Email: Sales@classicgenerator.com
www.Classicgenerator.com
IN STOCK
9005 LONG CASE SERIES
1955-1962 CHEVY CAR & TRUCK
ALTERNATOR REPLACEMENT FOR OEM STANDARD GENERATORS
__________________________________________________________________________________________________________________

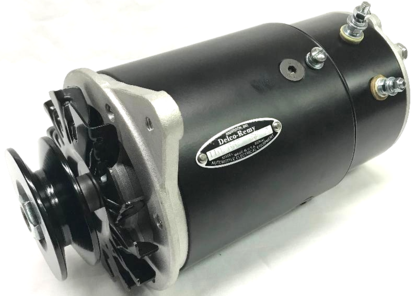

This unit is designed to look like the original generator but internally functions as an alternator.
Replaces Delco Non-Power Steering Generators
1100310, 1102014, 1100326, 1102042, 1102083, 1100321, 1102096, 1102097, 1102174, 1102173
- Improved charging rate at all RPMS.
- 85 amp output created by all new internally regulated alternator components.
- All mounting dimensions are the same as OEM except for a very slight increase in case diameter.
- Comes with new wiring hardware and step by step instructions.
Our 9005 unit will work as a one wire as well as two wire turning off your dash light.
NOW AVAILABLE
9014 LONG CASE 12 volt
1940-1952 Chevy Car & Truck
12 VOLT ALTERNATOR REPLACEMENT FOR OEM STANDARD DELCO GENERATORS
These 85 amp units come with the correct 5/8 belt pulley and offset
making them a direct replacement with no mounting modifications
Make Year
Buick 1953-57
Cadillac 1953-57
Chevy II 1962
Hudson Wasp w/ac 1956
Hudson 1957
Oldsmobile 1953-59
Packard 1955-58
Pontiac 1959-61
Studebaker 1956-61
Tempest 1961-62
Willys 1959-60
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
1955 1102025 9029V
1956 1102043 9029V
1957 1102043 9029V
1958 1102043 9029V With offset pulley
1958 1102059 9005 Hi-Perf only non tach drive no offset pulley
1959 1102043 9029V With offset pulley
1959 1102059 9005 Hi-Perf only non tach drive no offset pulley
1960 1102043 9029V With offset pulley
1960 1102173 9005 Hi-Perf only non tach drive no offset pulley
1961 1102043 9029V With offset pulley
1961 1102173 9005 Hi-Perf only non tach drive no offset pulley
1961 1102268 9005 Hi-Perf only non tach drive no offset pulley
NOTE: In order for your factory tachometer to read correctly you must either use your correct original pulley or we can supply you with a correct pulley at an additional charge. This includes the 3 5/8 and 3 5/8 with offset.
These units come with a smaller diameter pulley than original so on the non tach units a shorter belt may be required.
$625.00
IN STOCK
1956-1961 CORVETTE
ALTERNATOR REPLACEMENT FOR OEM STANDARD GENERATORS
tach drive and non tach drive
_______________________________________________________________________________________________________________
NOW AVAILABLE $455.00
9005 LONG CASE SERIES
ALTERNATOR REPLACEMENT FOR OEM STANDARD GENERATORS
______________________________________________________________________________________________________________
YEAR DELCO GENERATOR #
1940-1948 1102667
1949-1950 1102710
1951-1952 1102749
Add our dress up kit to any of the 9029 and 9005 units. Kit consist of correctly stamped Delco ID tag, warning tag and correct radio condenser kit. All installed for $85.00
NOTE: These units come with a smaller diameter pulley than your original meaning a shorter belt length change may be required.
9029V with offset pulley $795.00
GENERATOR BRACKETS
For 1955-62 Chevy cars and trucks
MADE IN USA!
_____________________________________________________________________________________________________________

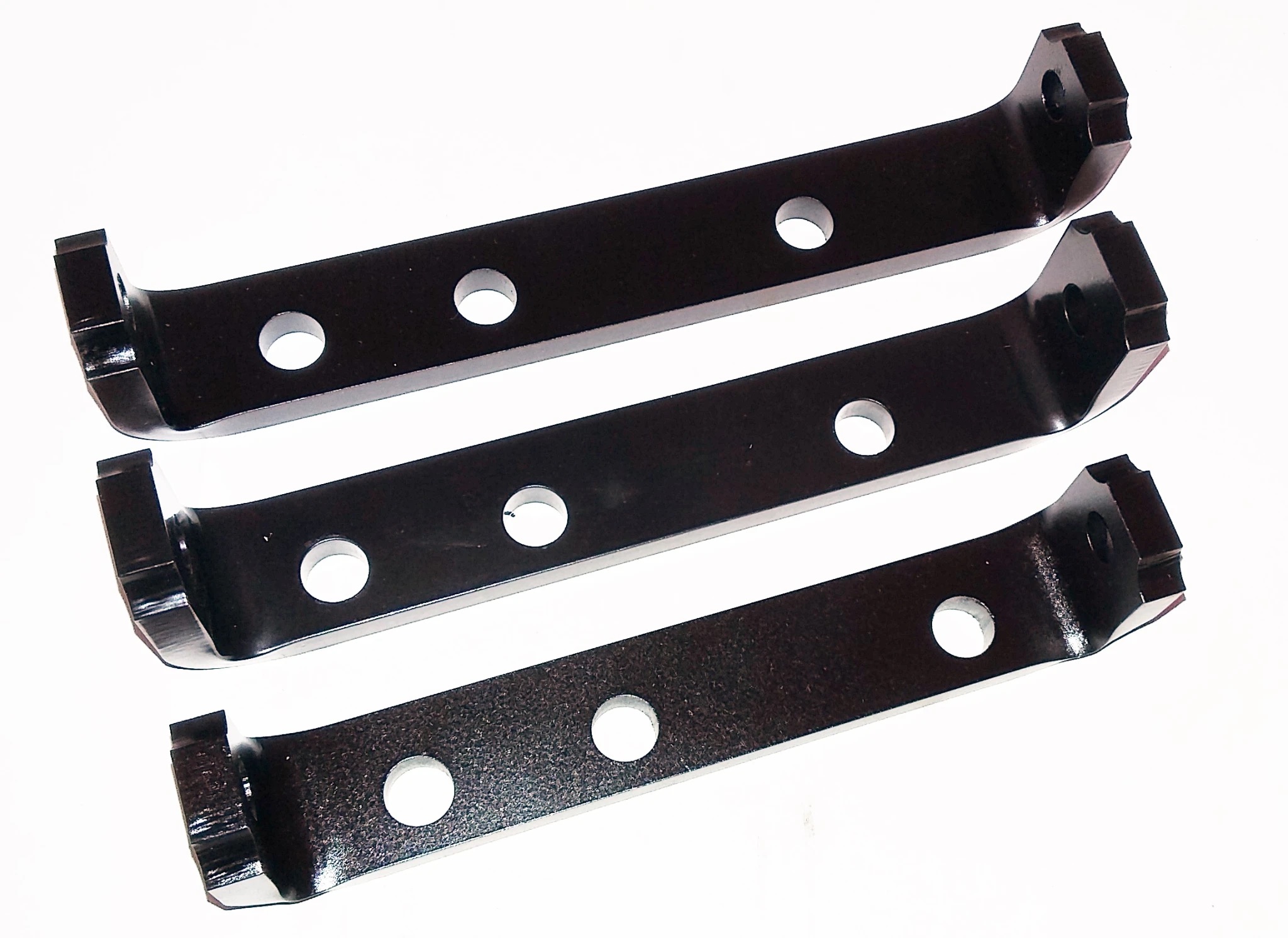

EXACT REPRODUCTIONS of the original
lower generator brackets
Exact reproductions of all three sizes. 6", 6- 1/2", and 7"
Fits original generators on 55-57 Chevy cars and trucks, see chart below
Correct thickness, radius corners, mounting holes & bends, exact reproduction
Powder coated Semi-Gloss Black
CM-038 6″ bracket 3836756 1955-57 w/o Power Steering $29.95
PS-136 6-1/2″ bracket 3725274 1956-59 with Power Steering $29.95
PS-150 7″ bracket 3720924 1955 w/PS, 1958-62 w/o PS $29.95
______________________________________________________________________________________________________________

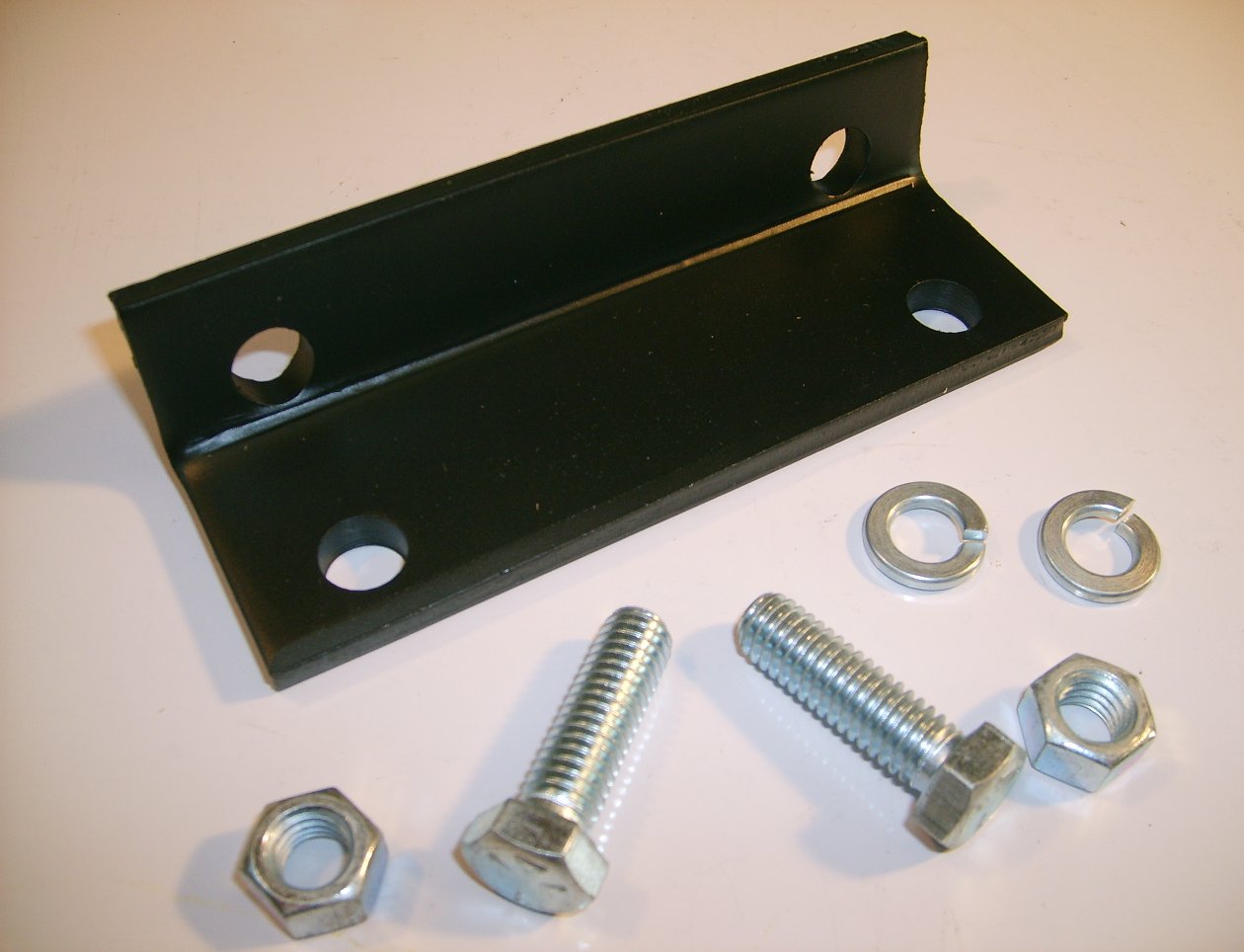

PS-081 GENERATOR RELOCATION BRACKET KIT

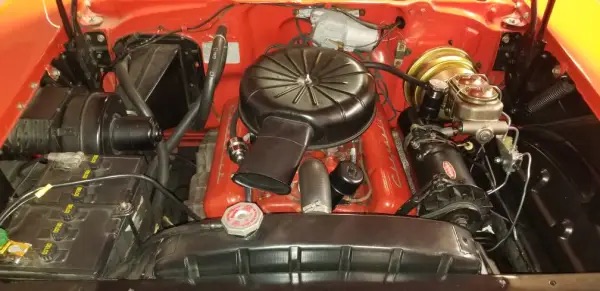

For late model power brake booster with dual master cylinder on 1955-59 Car with V8 engine and Factory Power Steering Generator/Pump

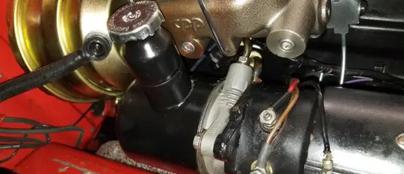

This bracket kit will reposition the stock power steering generator/pump to gain clearance for many late model booster and dual master cylinder set-ups.
INSTALLATION INSTRUCTIONS INCLUDED!
MADE IN USA!
MUCH CHEAPER THAN CONVERTING TO A LATE MODEL PUMP, PULLEYS, BRACKETS, HOSES!
THIS IS THE QUICKEST, EASIEST, AND CHEAPEST WAY TO ALLOW YOU TO ADD A LATE MODEL POWER BRAKE BOOSTER AND STILL RETAIN THE STOCK POWER STEERING GENERATOR AND PUMP!
POWDERCOATED SEMI-GLOSS BLACK!
PS-081 Generator Relocation Bracket Kit. $32.00
